Manchester (Great Britain)
Understanding isochrones for public transport is very complex, but we guarantee that the result is really precise, and the user can effectively analyze the public transport network.
You will be able to view the urban areas reachability departing from a precise date/time; a 5 minutes delay could produce a very different result.
Generate multi-polygons isochrones which represent the reachable areas from a given source point specifying total trip time, maximum pedestrian walk time and starting date/time

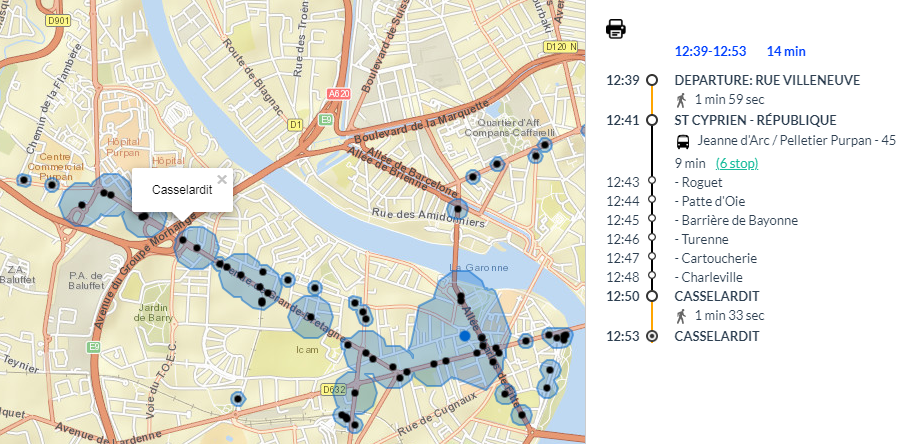

Provide a list of reachable public transport stops. For each stop we provide: stop name, latitude and longitude in addition you can see and print the trip from your start point to the selected stop (mouse over the stop)
Available trasport type: bus, tram, rail, subway, cable car, ferry and gondola
Customizable maximum route changes
Customizable pedestrian maximum walking time
Customizable pedestrian speed
Departments of urban transport
Public transport agency
Companies working on urban sustainable mobility
Transportation engineering company
and more ...
We have downloded and processed the GTFS files from http://transitfeeds.com/ website.
You can ask for 10 minutes isochrones without registration. If you wish to view isochrones with different times (between 5 and 60 minutes) registration is required.
You can ask to set-up your preferred city providing us the GTFS files. If the GTFS files is a public domain file we can use it.
In addition we can manage more than one GTFS file version for the same city, so you can view the difference between the reachable areas. This option is very useful when you have to understand what happens when you change/add/remove a route or change its timetable.
The prices is based on credits consumption. One credit for each minute. For an isochrone of 20 minutes 20 credits will be charged. For any information or request please email us at

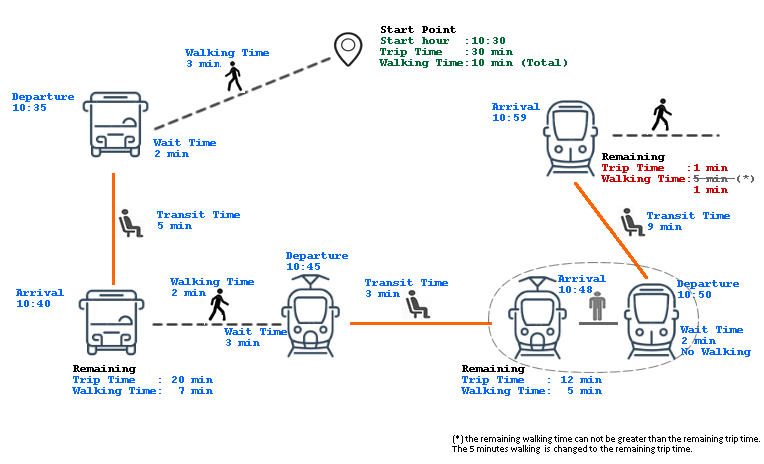

The Trip Time is the total time for your trip, this time includes time lost in walking between stops and waiting plus the transit time.
The Walking Time is the maximum time you want to spend on walking during the trip.
The Walking Time must be less than the Trip Time and when you get off the public transportation, the remaining walking time can not be greater than the remaining trip time.
Walking Time options:
All these calculations for all trips combinations in just one click
Save time and use iso4app to plan your public transport network
